10 Great New Things in Virtual Surveyor Version 6
Created by: Mark Paulson
Modified on: Wed, 11 Jul, 2018 at 6:34 PM
Watch the video :

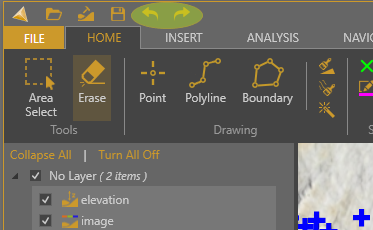

#1 – Undo
- Undo was one of our most requested features from previous versions.
- You can now recover from your mistakes easily.
- Use CTRL+Z or CTRL+Y to Undo/Redo.
- You can also use the standard windows icons from the quick access toolbar.

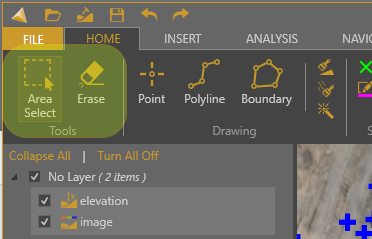

#2 – Point Removal
- Area select is now on the home tool tab.
- select the area and just hit delete on the keyboard
- We added the eraser tool as well.
- selection of point for removal is much easier.

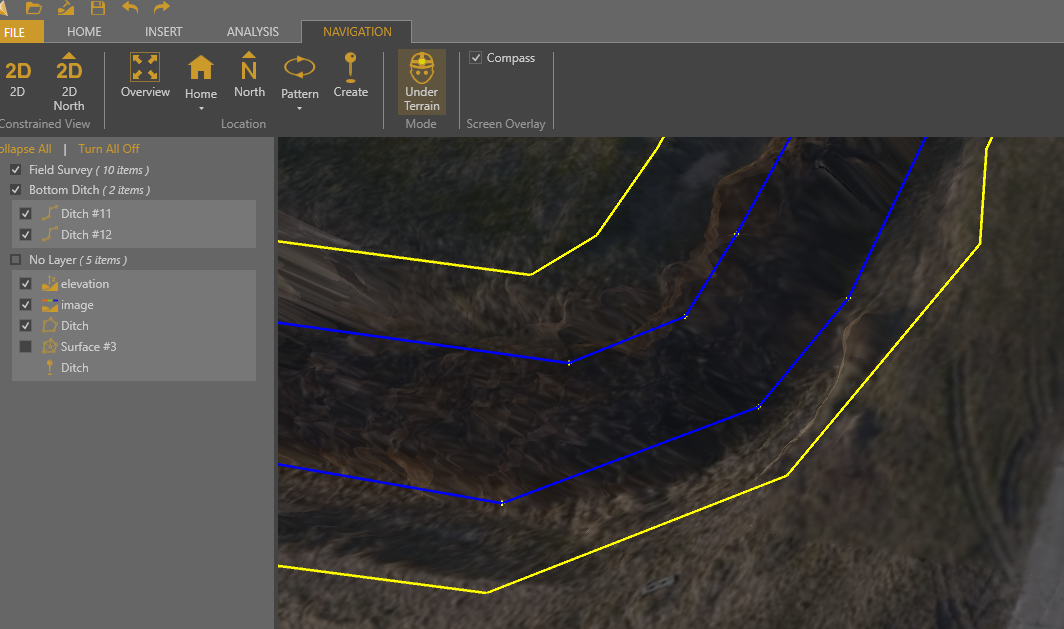

#3 – 3D Imports now supported
- The XYZ of all imported objects is maintained.
- Underground design data can now be imported.
- Turning on underground mode allows visualization.
- The imported blue lines below are below the terrain.

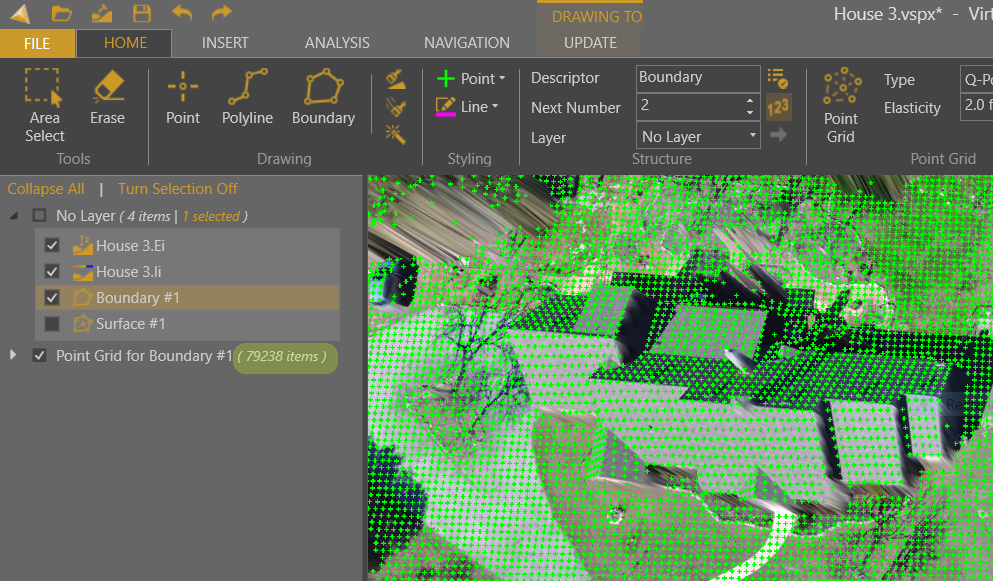

#4 – Descriptors
- All Virtual Surveyor 6 objects now support descriptors.
- Descriptors can now be alpha, numeric or both.
- Descriptions can now be easily changed.

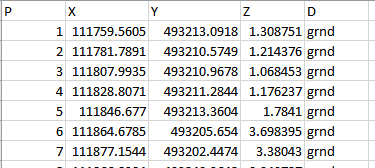

- Points are now exported in CSV format as P, X, Y, Z, D.

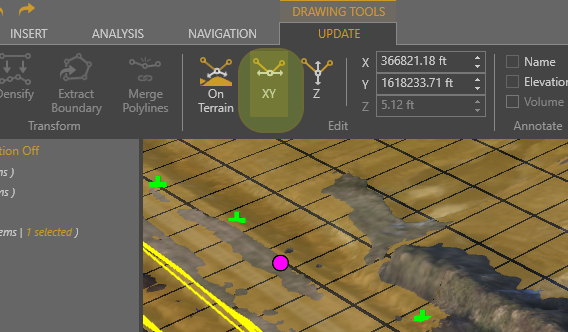

#5 – 3D Editing
- Points, Lines, and Boundaries can now be edited in all direction.
- Imported entities do not automatically assume terrain elevations.
- Individual Vertices of Lines and Boundaries can be assigned elevations.
- All the vertices of a Line or Boundary may be assigned the same elevation at once.
- Points can also be assigned elevations as well.

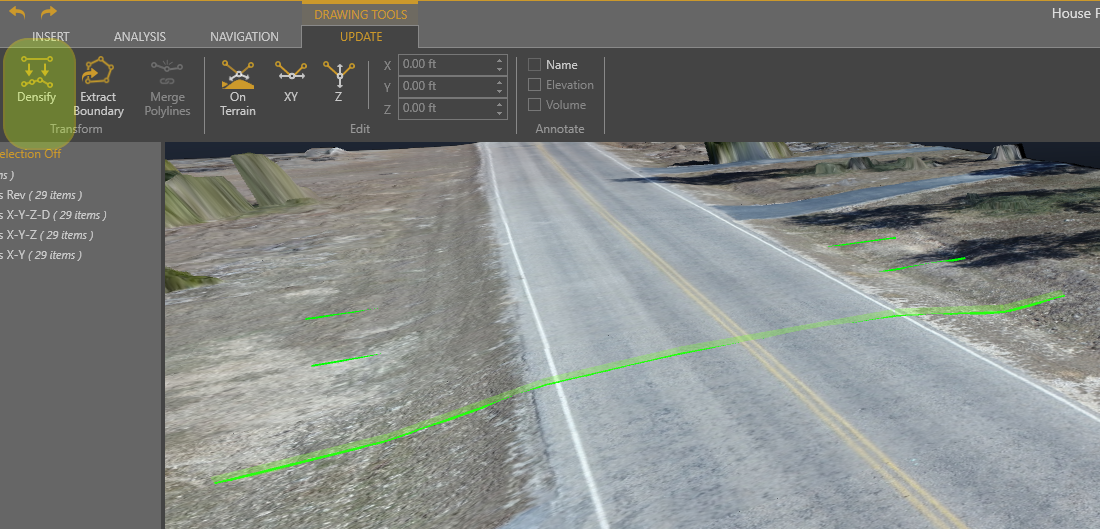

#6 – Densify Tool
- Select Lines and or boundaries may be densified or vertices automatically added based on terrain.
- Very handy for generating a profile line.
- Great for creating cross-section for a TIN.

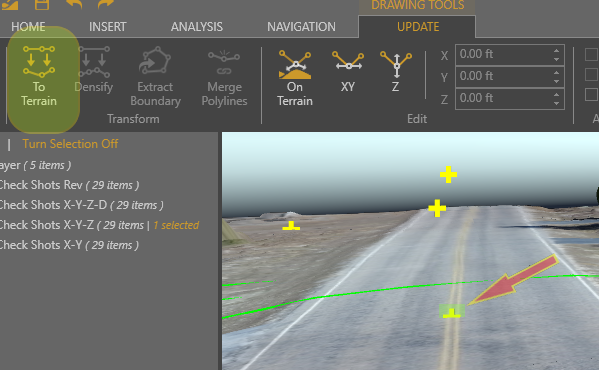

#7 – Move to terrain Tool
- Selected entities can be pushed or draped to the terrain.
- Checkpoints can be pushed to the terrain, exported and compared to the originals.
- Handy for checking UAV accuracy.
- 2D imported entities can be easily placed on the terrain.

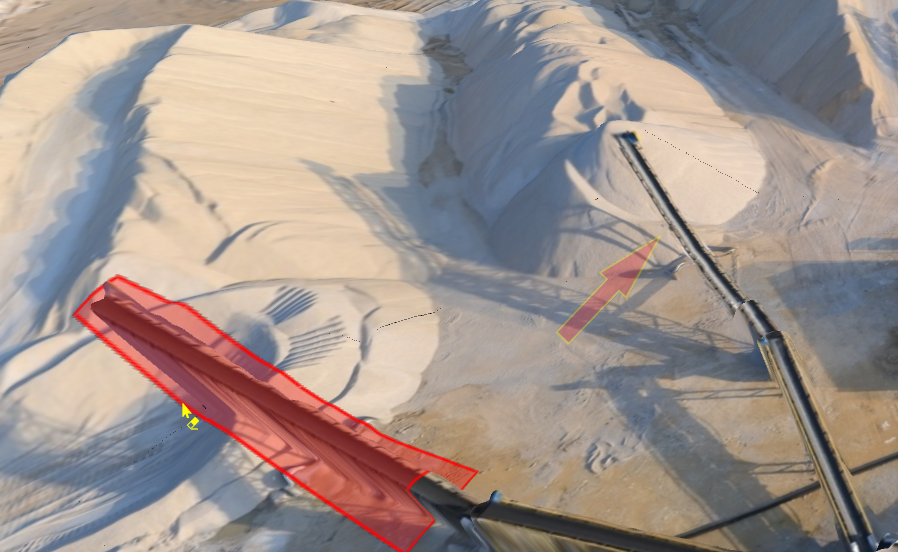

#8 – Clean Terrain
- Clickless and work faster.
- Create polygon and modify terrain replaced with one tool.
- The terrain is updated automatically.
- Ideal for removing conveyors and equipment.
#9 – Merge Terrains
- The Virtual Surveyor 6 project area grows dynamically.
- You can now combine as many terrains as you want.
- Save computing resources.
- Process smaller areas and combine in Virtual Surveyor 6.
#10 – Performance
- In addition to stability, performance is significantly improved.
- In version 5 a large point file caused long processing and saving times.
- That same project is handled in less than a second.
- We hope you think our 10 months of effort has been worth the wait!
