You can use the Export Labels tool to export your labels as a .csv file and load it into a map generating software.

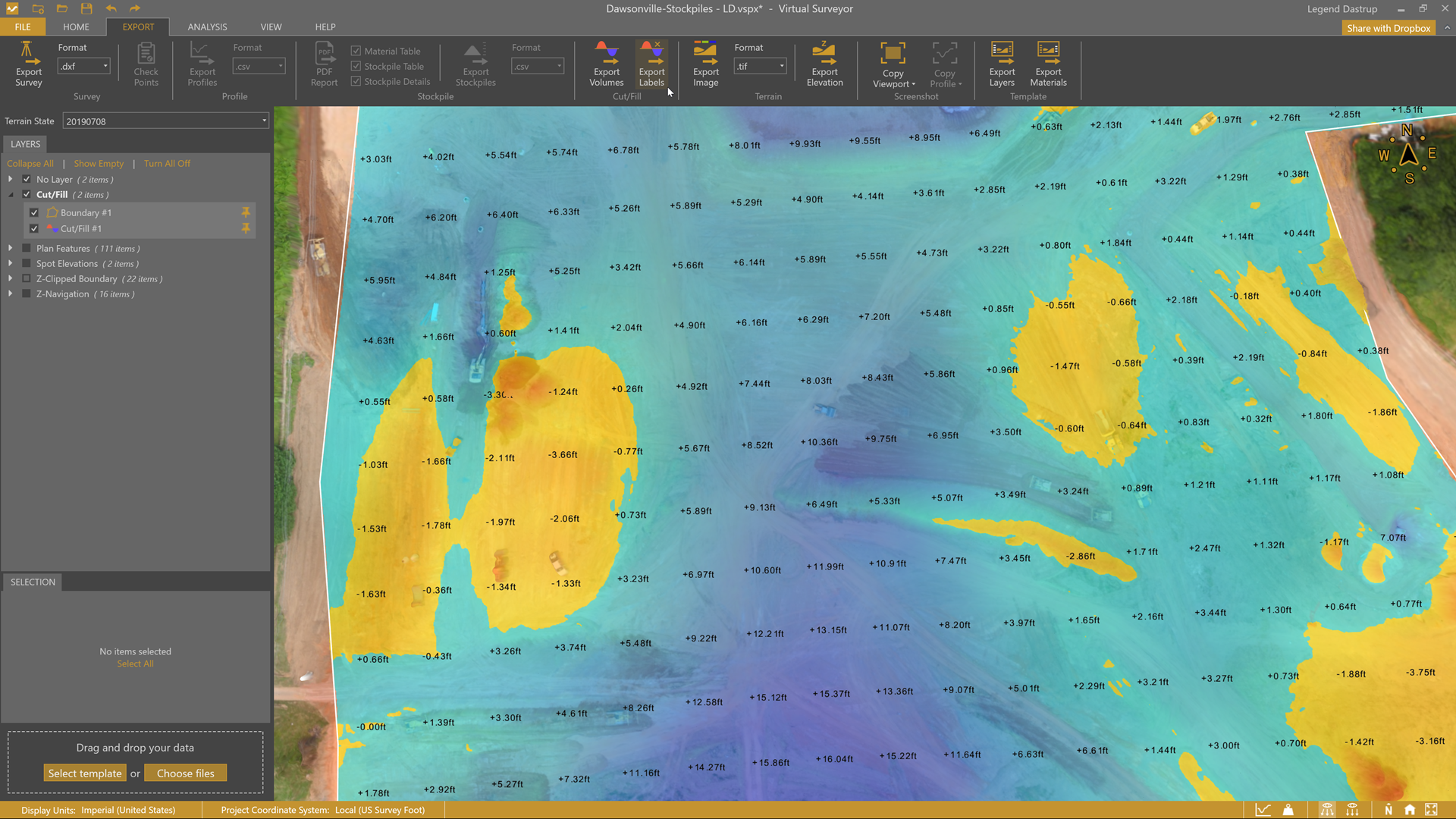

Export Labels is found in the Cut/Fill group of the EXPORT tab and is only available to use if at least one Cut/Fill calculation is visible in the project.


Overview


Quick Usage Guide

  1. Tick and Select the Cut/Fill items that you want to export the labels from.
  2. Then in the TOOLS tab, tick the Cut/Fill checkbox to calculate and show labels of cut and fill for the selected items.

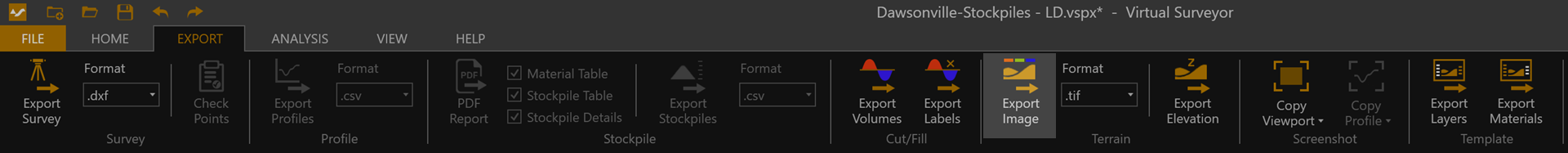

  3. Go to the EXPORT tab and click Export Labels.
  4. Select the name and the location for your .csv file.
  5. Click Save.
  6. Once completed, you can add the .csv file with the Cut/Fill Labels as a layer for use in a CAD (e.g. Civil3D) or GIS (e.g.
    QGIS) program.


Tip: In order to work faster, you can select all items in your project that you want to export. Items that do not contain a Cut/Fill calculation will not be exported.


Tips and Tricks

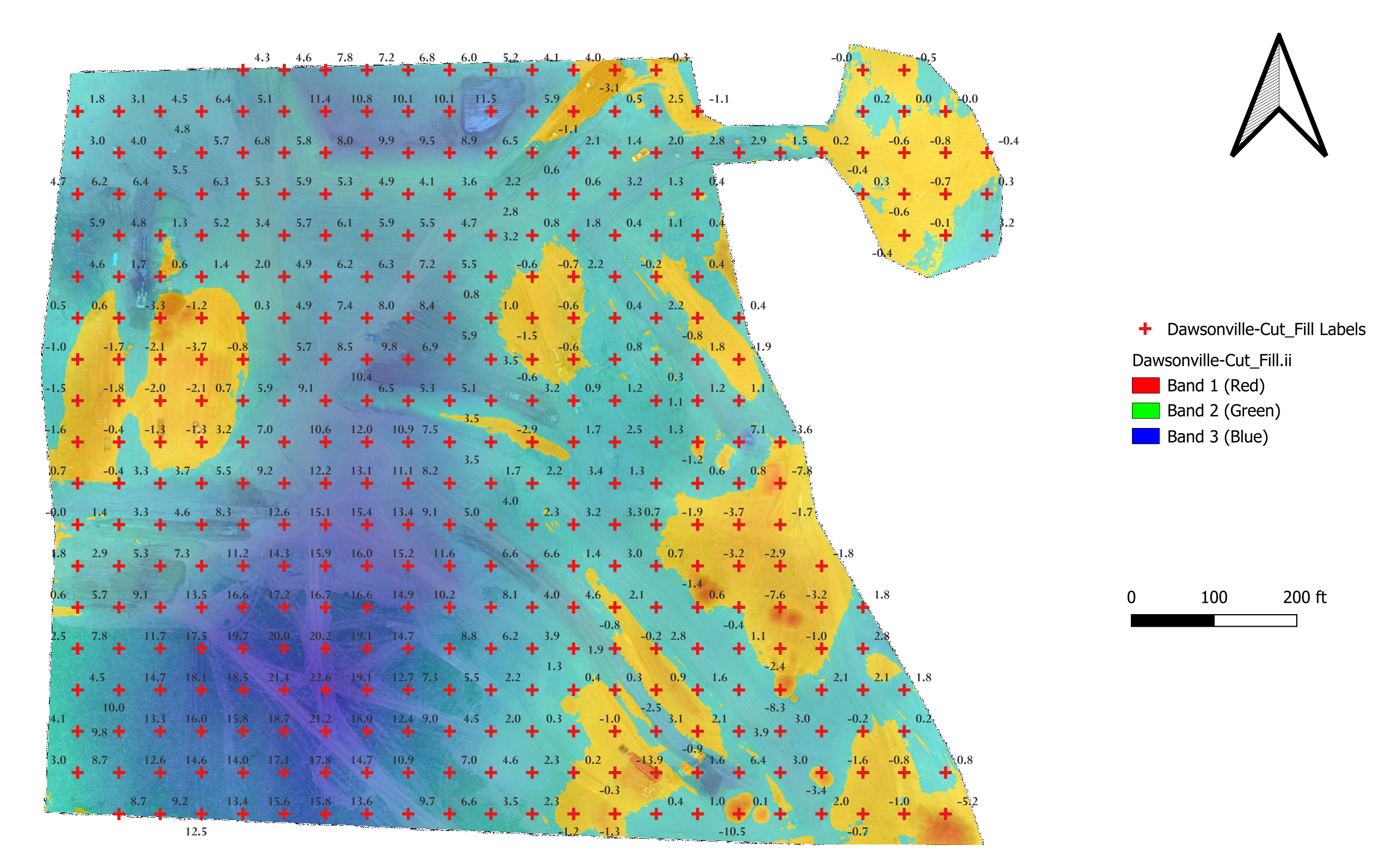

  • You can combine your exported labels and an exported image to create a high-resolution cut/fill Map to print from a CAD or GIS software.
  • You can change the color, font size, and spacing of the Cut/Fill Labels in the TOOLS tab when you select a Cut/Fill Item.
  • Use Copy Viewport tool to create a quick alternative visual of a Cut/Fill map with the Cut/Fill Labels included that can be added to a report.
