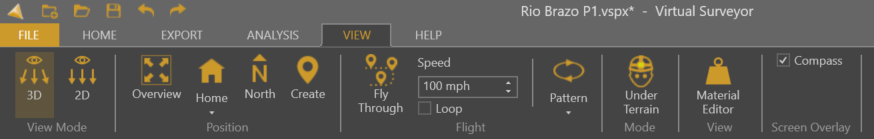

The VIEW tab contains tools that allow you to change perspectives of your data in the Viewport, and also enable or disable menus for other functionality. These include tools to orient yourself, change viewing modes between 2D & 3D, create Fly Throughs, and even move underneath your data. The Material Editor can also be enabled to set up stockpile information.



View Mode group


IconNameDescription
3DEnables 3D view mode. This is the default View mode for Virtual Surveyor. Your data is viewed in a fully 3D environment where you can rotate your view in any angle or direction. Project items are in their true 3D position and can be underneath the Elevation Terrain as well.
2DEnables 2D mode. 2D mode locks the view to top-down (but you can zoom in or out), and the Image Terrain is shown as a true orthomosaic. The 2D mode shows all Project Items in their true 2D position and are unobscured by the elevation terrain, even if their 3D position is below the terrain.


Position group


IconNameDescription
OverviewReturns the Viewport to the default view (Top-down facing northward).
HomeReturn to or set Home view location.
NorthOrients your view northward.
CreateCreates a Location item used in Fly Throughs.

Result: Location


Flight group


IconNameDescription
Fly ThroughAllows you to set a Fly Through view of the scene from the created Location items.
-
SpeedThe speed your Fly Through moves from location item to location item.
-
LoopRestart a Fly Through from the first location item when checked and using a Fly Through.
PatternMoves the view in a circular or linear pattern starting from the center of your Viewport.


Mode group


IconNameDescription
Under TerrainEnables you to navigate or go under the Elevation Terrain.

View group


IconNameDescription
Profile ViewEnables the Profile View. Used to get a vertical section of your elevation terrain along a line.
Material EditorEnables the Material Editor workspace. Used for defining stockpiles.

Screen Overlay group


IconNameDescription
-
CompassEnables the compass in the Viewport.
