You can seamlessly generate a detailed stockpile PDF report which includes volume, tonnage, and monetary value. You can configure the report depending on the project requirements. Using a PDF format allows you to easily share your analysis with your customers.

Quick Usage Guide

  1. Enable the stockpile items.
  2. Go to the EXPORT tab.
  3. Click on PDF Report.
  4. Specify a file name and storage location and click Save.
  5. The PDF file is created and automatically opens.

Creating Reports from Different Stockpile Table Types

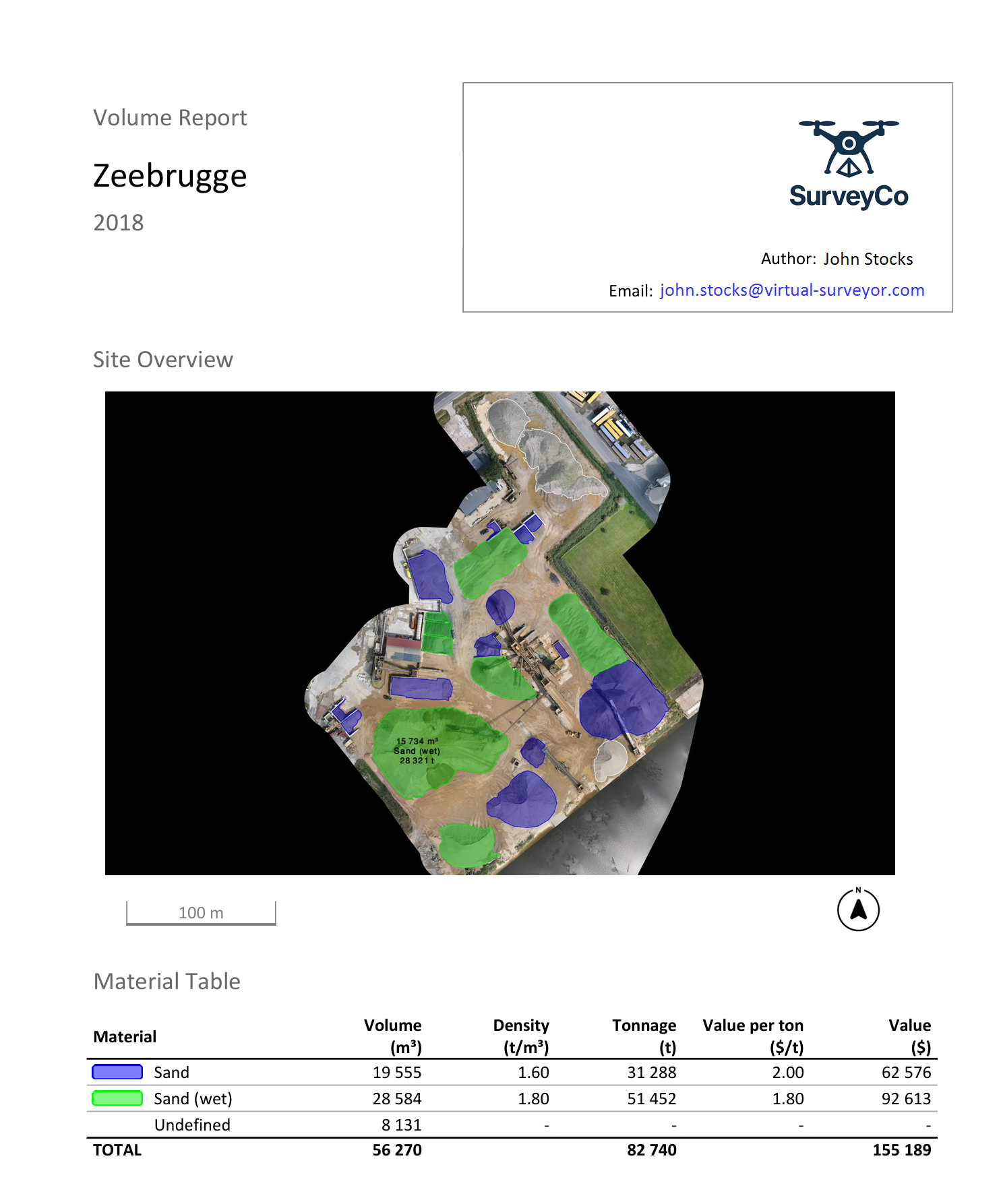

You can set up the content of the stockpile report depending on your preferences and the purpose of that report. The report will always contain the overview of the site. You can then decide if you want to drop the following sections:

  • Material Table
  • Pile Table
  • Pile Details

Material Table

The Material Table gives the total quantities for each material over the entire site.

Density and Value per ton are defined by the user through the Material Editor.

Pile Table

The Pile Table gives the volume, tonnage, and value for each stockpile.

Pile Details

Pile Details shows each stockpile has a specific section in the report that contains a 2D view of the pile, and a complete pile feature table.

Table elementDescription
ReferenceStockpile reference surface. It can be:
- The elevation of a flat surface.
- The name of the reference terrain state.
- "Surface" that refers to the interpolated boundary.
MaterialType of material that constitutes the stockpile. Only available if a material type defined in the Material Editor is assigned to the stockpile.
VolumeNet volume of the stockpile
DensityTonnage by volume unit associated to the material.
TonnageMass of the stockpile. Only available if a density value is filled in the Material Editor
Value per tonMonetary value per ton associated to the material.
ValueMonetary value of the stockpile. Only available if a value per ton is filled in the Material Editor.
2D areaHorizontal area covered by the stockpile.
Height Vertical distance between the highest point of the stockpile and the reference surface.

Tips and Tricks

  • You can add your company logo to the stockpile PDF report.
    • After adding your company logo in the application settings, it will automatically display on your reports.
  • The stockpile PDF report only contains tonnage and value if a material is assigned to the stockpile.
    • The material density and value per ton must also be set in the Material Editor.
  • In the Pile table, the stockpiles are listed by material.
    • It is not possible to change the stockpiles order.
