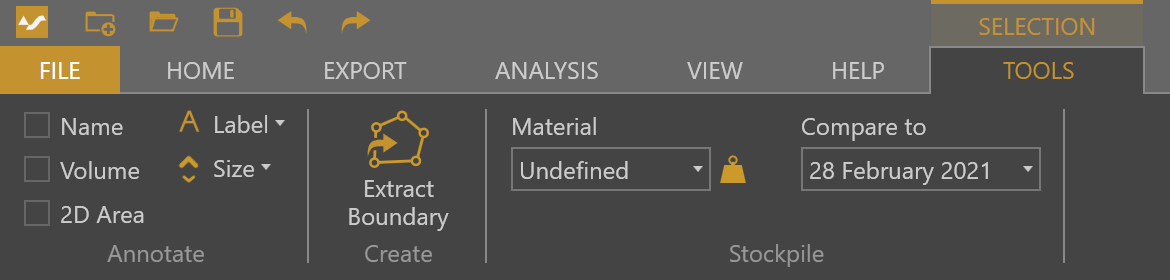

When a Stockpile item is selected, the SELECTION - TOOLS menu becomes available. The TOOLS menu contains tools that allow you to annotate, change the styling, or perform advanced functions on the selected Stockpile item(s). The menu dynamically adjusts which tools are available, depending on your project item you've selected.



Overview


Annotate Group


IconNameDescription
-
NameDisplays the Stockpile's Descriptor & Number over the Stockpile in the Viewport.
-
VolumeDisplays the calculated net volume amount over the Stockpile in the Viewport. Volume is displayed in cubic meters or cubic yards, depending on the Project Settings.
-
2D AreaDisplays the calculated surface area over the Stockpile in the Viewport. The Area is displayed in square meters or square yards, depending on the Project Settings.
-MaterialDisplays the material type over the Stockpile. The Material that is assigned to the stockpile will appear based on the material type that was entered in the Material Editor.
-TonnageDisplays the total calculated weight per cubic unit. The Tonnage measurement is displayed in either metric tons per cubic meters or imperial tons per cubic yards, depending on the Project Settings.
-ValueDisplays the calculated net value of the stockpile based on the assigned material type. Value is displayed in whatever monetary system you have entered in the Material Editor.
LabelAllows you to change the Stockpile Label color.
SizeAllows you to change the Stockpile Label size.

Create Group


IconNameDescription
Extract Boundary Creates a Boundary item from the outside edge of your Stockpile item.

Result: Boundary
Extract SurfaceExtracts and creates a Surface item from your Stockpile item. The extracted Surface is a copy of the surface being used to measure your volume.

Result: Surface

Volumes Group


IconNameDescription
Recalculate VolumeAllows you to recalculate the volume of your Cut/Fill Item. This tool is only available if there are any changes made to the elevation terrain within the boundary of that Cut/Fill Item.


Stockpile Group


IconNameDescription

-

MaterialContains a dropdown menu of available materials you can assign to a stockpile. Material options consist of created materials from your Material Editor. The search function can be utilized to help quickly find materials.
Material EditorEnables the Material Editor workspace. Used for defining stockpiles.
