The Main View is the default view you see when you start a New Project. In the Main View, you find the set of tools you need to create survey deliverables from your drone data.


The Main View consists of 10 components:

1. Viewport

2. Ribbon

3. Project View

4. Terrain State Manager

5. Add Data Control

6. Selection Box

7. Profile View

8. The Material Editor

9. Status Bar

10. Quick Access Toolbar



1. Viewport

The Viewport is the most important component of the Virtual Surveyor software.

  • The Viewport is the place where you can see, explore, and understand your drone data and create your topographic surveys.
  • You can navigate through the Viewport with your mouse or keyboard.


2. Ribbon

The ribbon is the menu at the top of the application that gives you access to all the operations you can do in your Virtual Surveyor project.

  • The ribbon is organized through a series of logically organized tabs.



TabDescription
HOMEThe HOME tab contains the most commonly used functions like drawing and grids.
EXPORTAllows you to export your work to survey deliverables like a CAD model or stockpile report.
ANALYSISFunctions that help you understand your data such as the slope steepness lens.
VIEWFunctions that relate to the different ways you can view your projects.
HELPEasy access to the Knowledge Base, videos, and how to get in touch with us for assistance.
TOOLSExposes a series of operations that you can do to the selected project item(s).
Note: The appearance of the tabs is different for Peak, Ridge, and Valley versions.


The FILE button gives you access to the Backstage View, which contains the commands to create a new project, open an existing project, and save a project.


3. Project View

The Project View is available on the left side of the application.

  • The Project View helps to structure your survey in different layers
  • The Project View also gives you access to all your Project Items, even when they are not visible in the Viewport.
  • Right-click on a project item or layer to gain access to several contextual menus that allow you to create and manage layers and project items.



4. Terrain State Manager

The Terrain State Manager allows you to organize a project site over time

  • A Terrain State can contain drone data or a CAD design of a future state.
  • The Terrain State Manager is located directly above the Project View section.



5. Add Data Control

The Add Data Control is also available on the left side of the application and appears under the Project View.

  • The Add Data Control allows you to add drone and CAD data to your project.
  • You can click choose files or drag-and-drop data in the entire Main View.
  • The Add Data Control shows progress when your data is converted, imported, or downloaded from Dropbox.



6. Selection Box

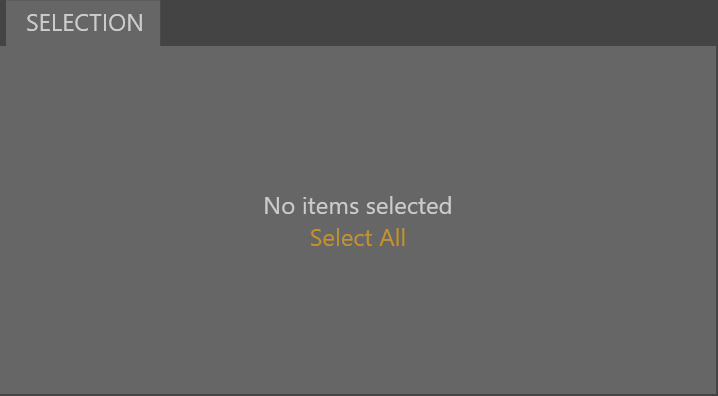

The Selection Box exposes a Select All function and will present information about the selected Project Item or items.

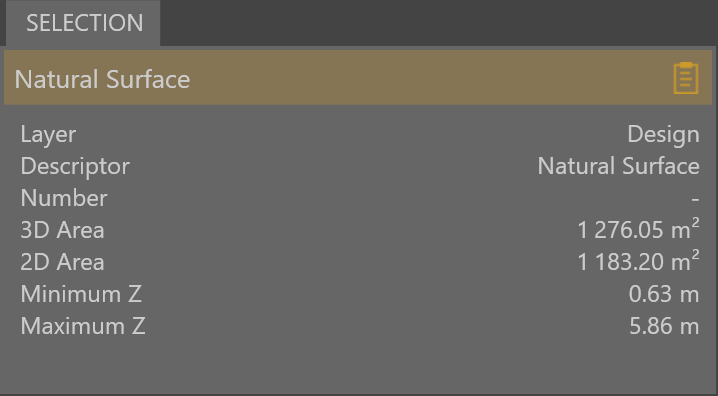

  • When you have a single item selected, the Selection box displays its properties.
  • When multiple items are selected, the Selection box displays a summary by item type.
  • You can click on an item type to create a Selection Subset.




You can also click on the copy icon in the upper right corner to copy the properties of a single item to the clipboard.


7. Profile View

In the Profile View, you can get a vertical section of your topography along a line.

  • This is helpful to analyze elevations in your projects for single or multiple moments in time.
  • The Profile View allows you to look at your drone data from another point of view in addition to the default interactive 3D and 2D map views.




8. The Material Editor

The Material Editor allows you to define a material with properties like density, value per ton, and display color.

  • Materials are used to convert volume information to tonnage and monetary value.
  • The colors help identify how different materials are spread over your (aggregates) site.



9. Status Bar

The Status Bar is the horizontal (ochre-colored) menu at the bottom of the Main View.

  • The Status Bar displays information about the project, like the coordinate system and the corresponding geographic coordinate of the mouse cursor.
  • The Status Bar also allows you to change the Project Coordinate System and gives quick access to frequently used functions like the 3D and Map View Modes



10. Quick Access Toolbar

The Quick Access Toolbar is a configurable toolbar—at the very top of the application—that shortcuts to important functions of the application like Undo and Save
