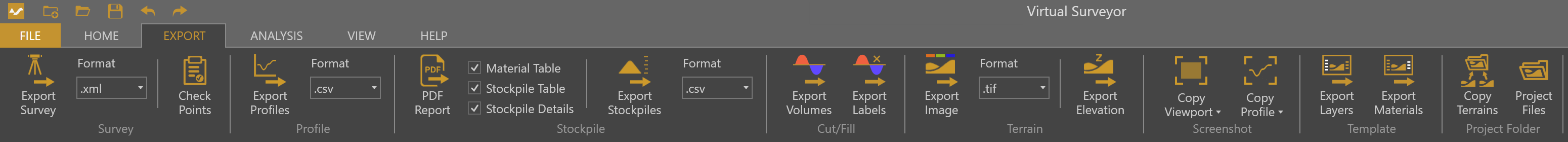

The Export tab contains functions for exporting your work to common formats that can be used in other software. You can export your surveys, check points, profiles, stockpiles, cut/fill volumes, orthophotos, and elevation models. The Export tab also allows you to create screenshots of the Viewport and the Profile View.



Survey Group


IconNameDescription
Export SurveyExports your survey items (Point, Polyline, Boundary, Surface [TIN & Contours]) to a designated format.

Result: Drawing Exchange Format (.dxf) / Land XML (.xml) / Shapefile (.shp) / Comma Separated Values (.csv) / Keyhole Markup Language (.kml)
Check PointsPerforms a quality check on drone data. An Accuracy Report can be exported along with the check point accuracy list.

Result: Text (.txt) and Comma Separated Values (.csv)

Profile Group


IconNameDescription
Export Profile Exports your profile items to designed format.

Result: Drawing Exchange Format (.dxf) or Comma Separated Values (.csv)

Stockpile Group


IconNameDescription
PDF ReportGenerates a Stockpile(s) report. Decide if you want to omit the Material Table, the Pile Table, and/or the Pile Details in the report by unchecking the boxes.

Result: Portable Document Format (.pdf)
Export StockpilesExports your Stockpile(s) information to a designated format.

Result: Shapefile (.shp) or Comma Separated Values (.csv)

Cut/Fill Group


IconNameDescription
Export Cut/FillExports your Cut/Fill(s) information to a designated format.

Result: Comma Separated Values (.csv)

Terrain Group


IconNameDescription
Export ImageExports your Image terrain (Orthomosaic) to a designated format.

Result: GeoTIFF (.tif) or JPEG2000 (.jp2)
Export ElevationExports your Elevation terrain to GeoTIFF format.

Result: GeoTIFF (.tif)

Screenshot Group


IconNameDescription
Copy ViewportCopies a screenshot of the Viewport to the clipboard or saves the screenshot as an image.

Result: Image (.jpg) or clipboard item
Copy ProfileCopies a screenshot of the Profile View to the clipboard or saves the screenshot as an image.

Result: Image (.jpg) or clipboard item
